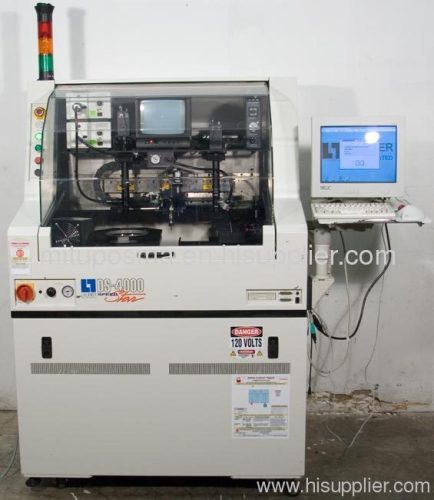

Laurier DS-4000 SpeedStar Die Device Sorter/Pick & Place

Date of Manufacture: 6-2000
Power Requirements: 120 V, 50/60 Hz, Single Phase, 16.0 A

Description:
The Laurier DS-4000 is a high precision die sorter with the flexibility to place a variety of devices including Flip Chip, WLCSP, BGA's, MEMS, GaAS, Laser Bars and bare silicon.

Key Features:
# Top surface and backside inspection
# Pick and Place into tape reel, waffle pack, Gel-Pak, film frame, hoop, JEDEC tray or custom carriers
# Quick change over
# Flip or no flip to the output carrier with the click of a button
# Component size from 0.2 mm to 25 mm
# Accuracy of ±25 µm

Specifications:
Speed: Places devices at up to 4800 UPH
Accuracy: Placement repeatability of ±25 µm
Flexibility:
# Quickly change between tape reel, waffle pack, Gel-Pak, film frame, hoop, JEDEC tray or custom carrier.
# Device changer in < 5 minutes
# Flip or no flip selectable in software
# Standard die size range from .2 mm to 45 mm

Inspection Capability:
# Detects defects down to 1/80th of die size
# Ink dot inspection
# Bump inspection
# Chip defect inspection
# Backside mark verification

Configurations:
Facilities: 200/230 VAC (this unit is setup for 120 VAC), 85 PSI
Cleanroom: Class 10000
Standards Compliance: Complies with CE, SEMI S2 & S8 and NFPA79 standards
